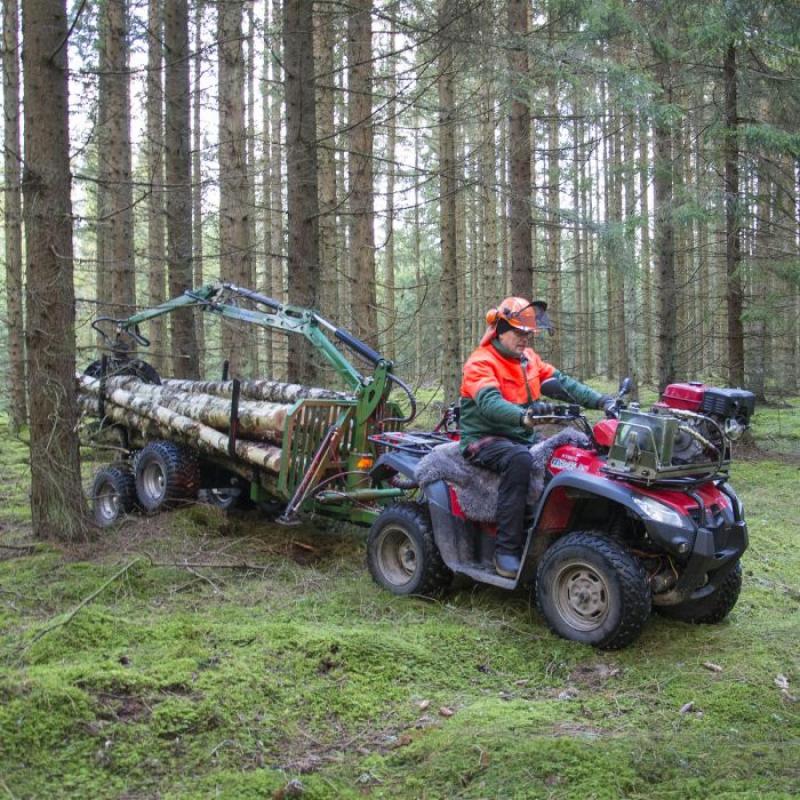

Kellfri 2 Tonnes With 3.6m Crane & Drive Wheels
9 hp petrol motor, for ATVs or small tractors, hydraulic stabilisers as standard. Our forestry trailer with wheel drive now also comes with articulated steering Articulated steering for better handling • The forestry trailer runs in the tractor's wheel tracks • Better responsiveness in tight passages • Versatile rig
| Make | Kellfri |
|---|---|
| Model | 2 Tonnes With 3.6m Crane & Drive Wheels |
| Stock No. | N/A |
£7,500.00 Ex VAT

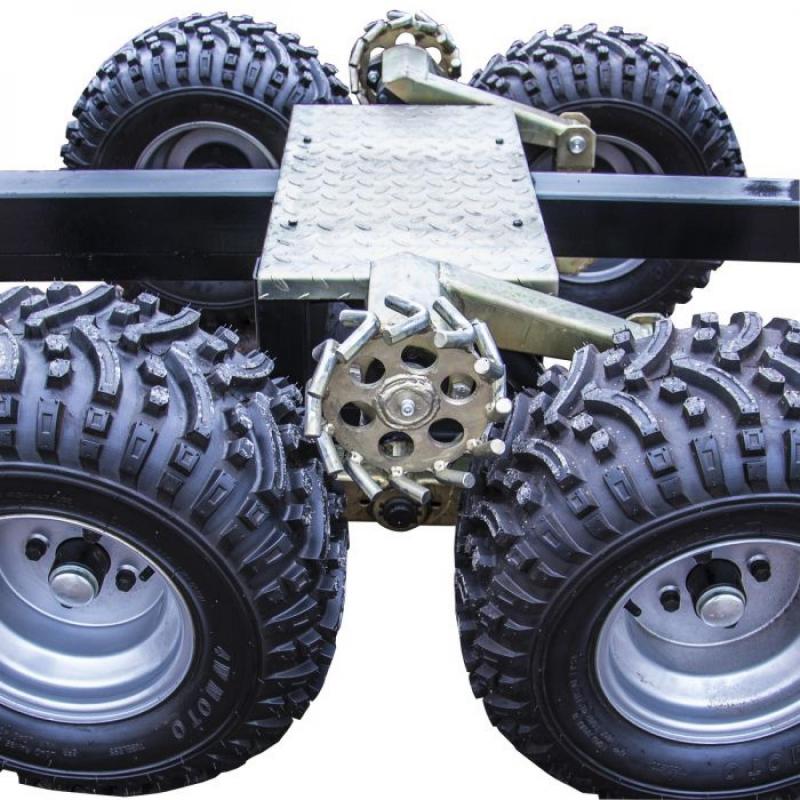

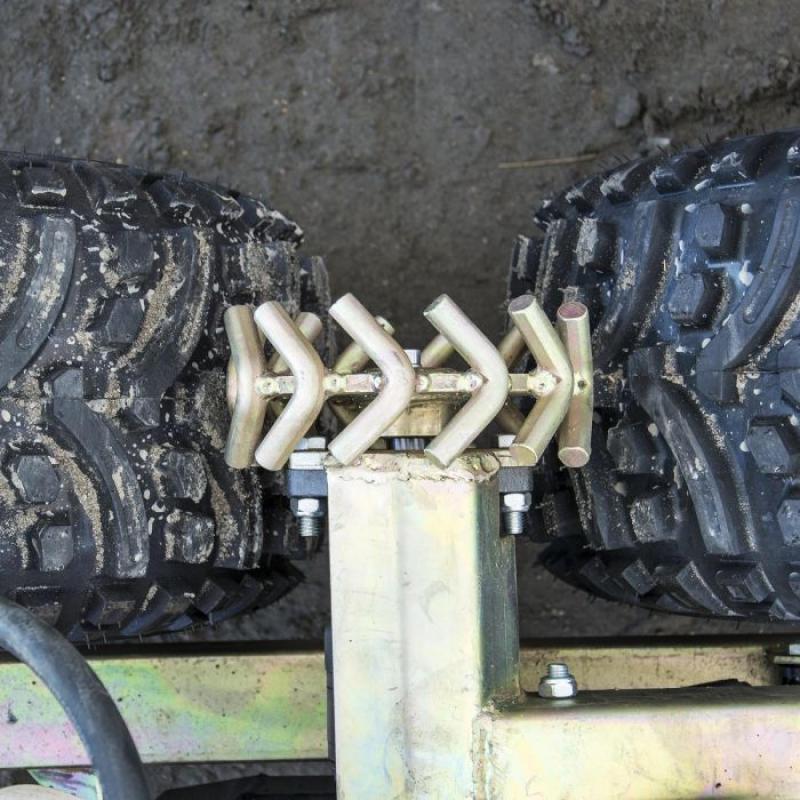

• Wheel drive via hydraulic rollers between the tyres

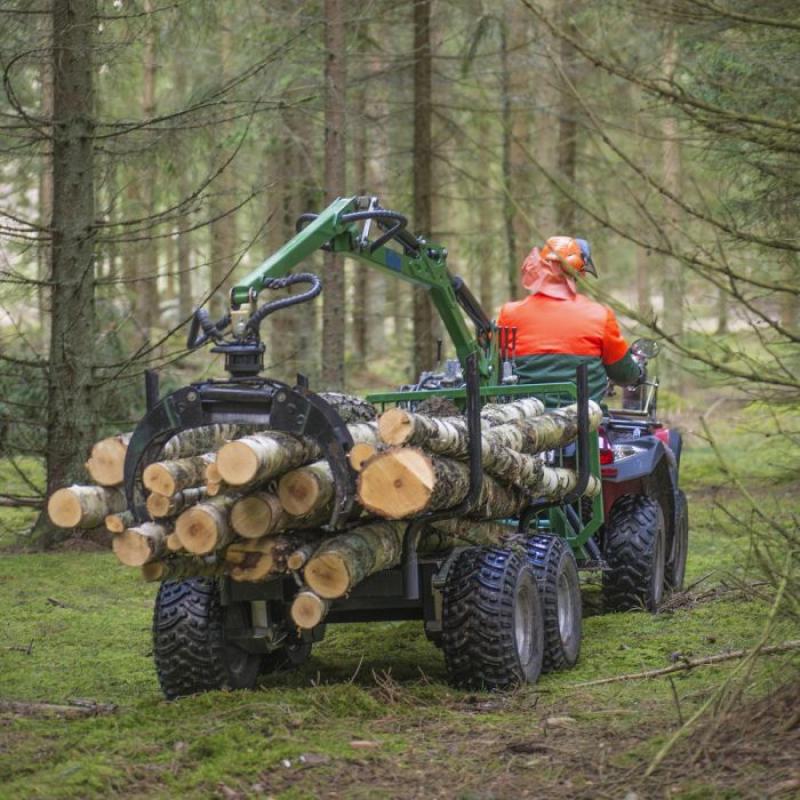

• Terrain-friendly bogie
• High ground clearance
• Stable frame makes it easy to pull the forestry trailer

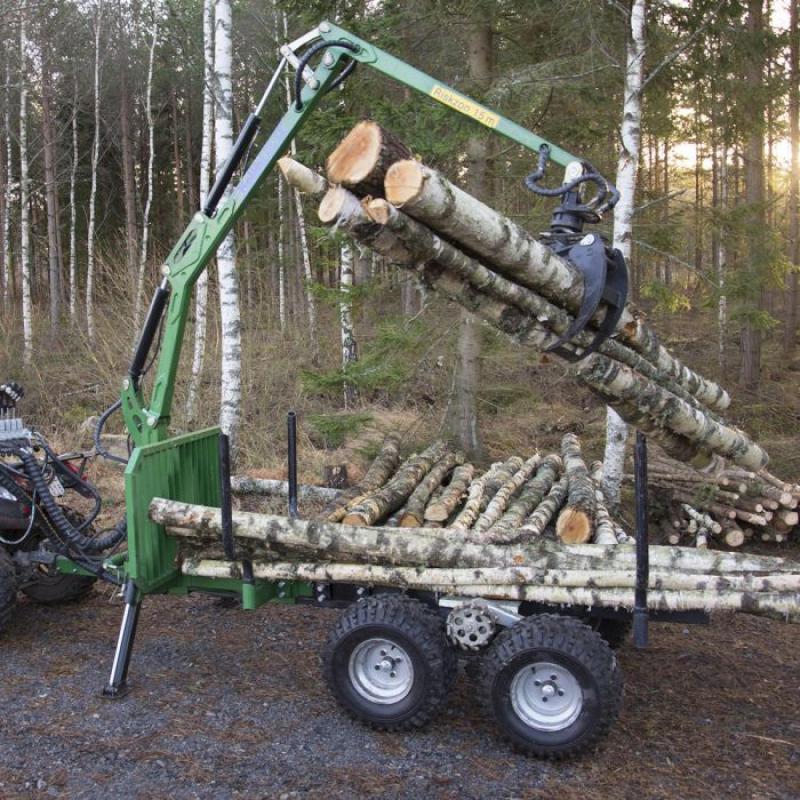

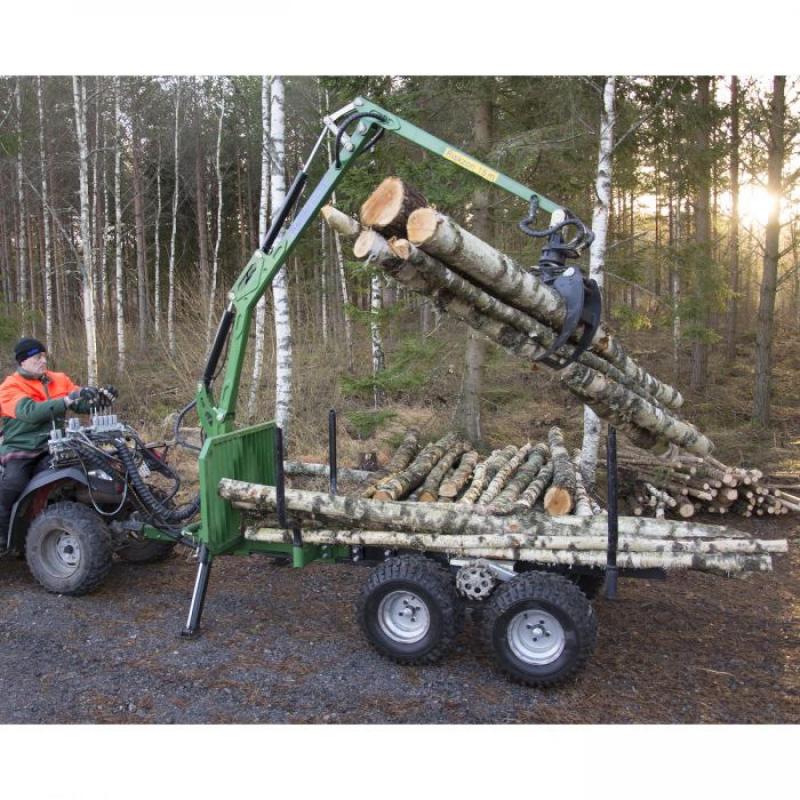

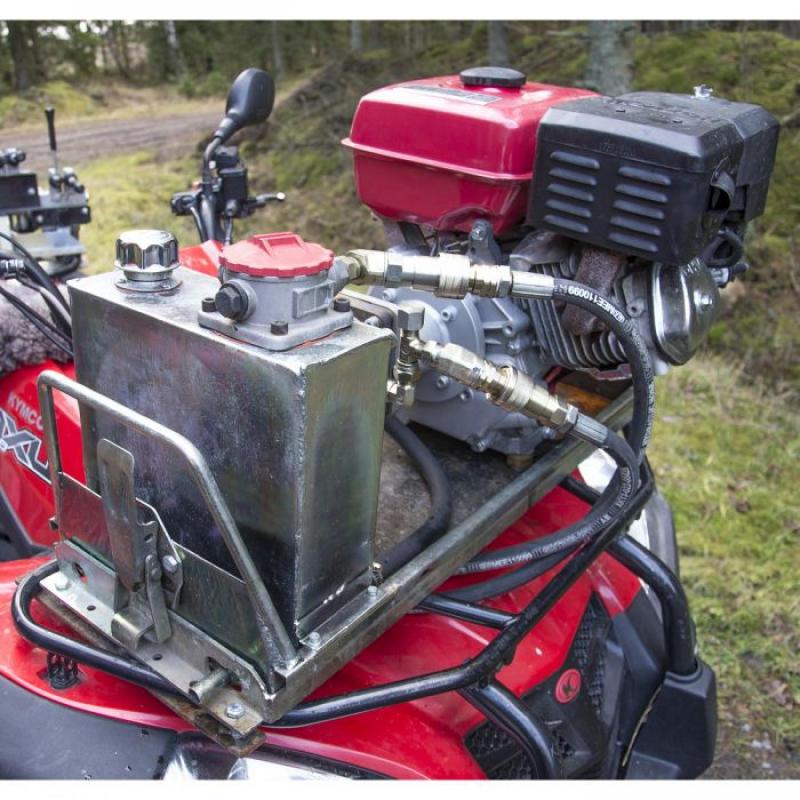

9 hp petrol motor provides the forestry trailer with the power it needs, crane with superior movement pattern and strength. Wheel drive via rollers on the well-treaded tyres, terrain-friendly bogie and good ground clearance.

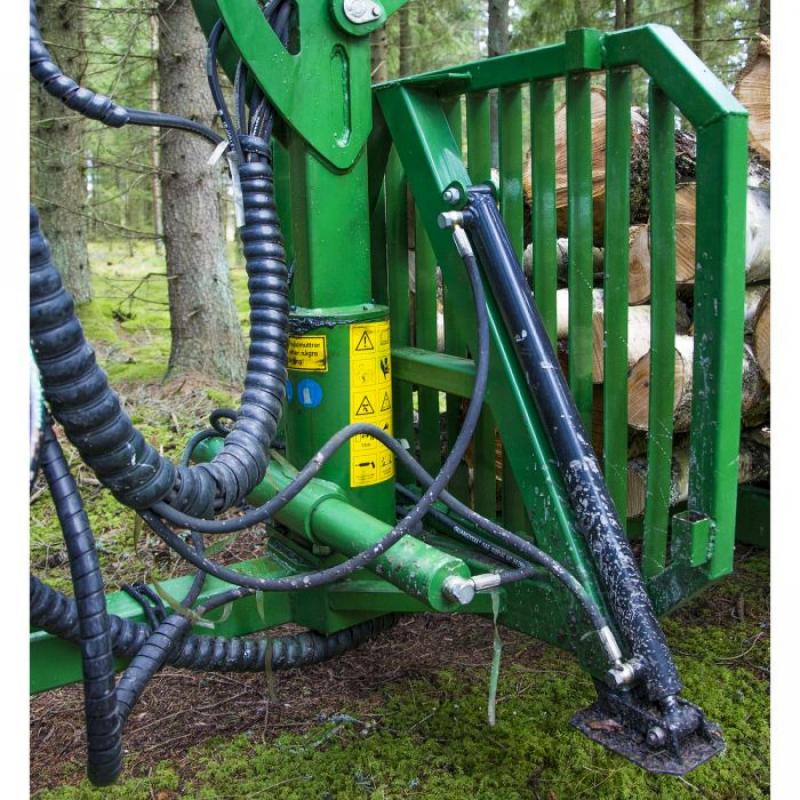

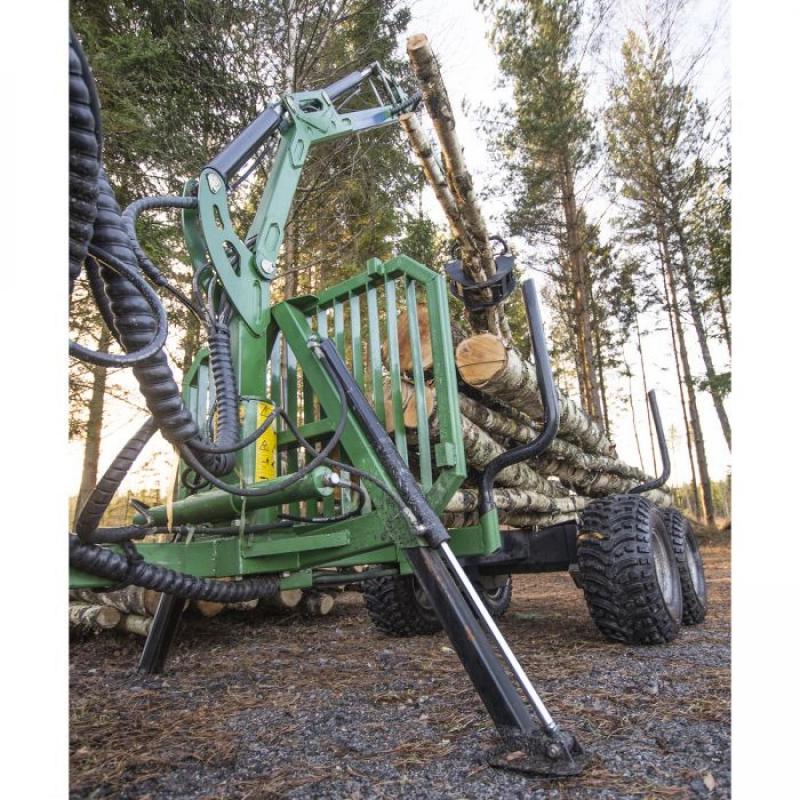

Hydraulic stabilisers mean that the forestry trailer remains stable during loading and unloading. All hydraulics and hoses are built in and guarded to minimise the risk of external damage. The forestry trailer is supplied with yellow crane protection.
Horizontally adjustable bogie for adaptation to different lengths of timber and thus also adjustment of the pressure on the ball hitch on the ATV. This is very important as too much pressure can damage your ATV and a negative pressure makes the rig unstable and dangerous.
The wheel drive substantially increases accessibility and makes the forestry trailer easier to manoever in the forest and through confined spaces. The rig can also be equipped with a hydraulic winch.
All in all, the technology, strength, safety and price will make this forestry trailer a welcome companion in the forest for many years.

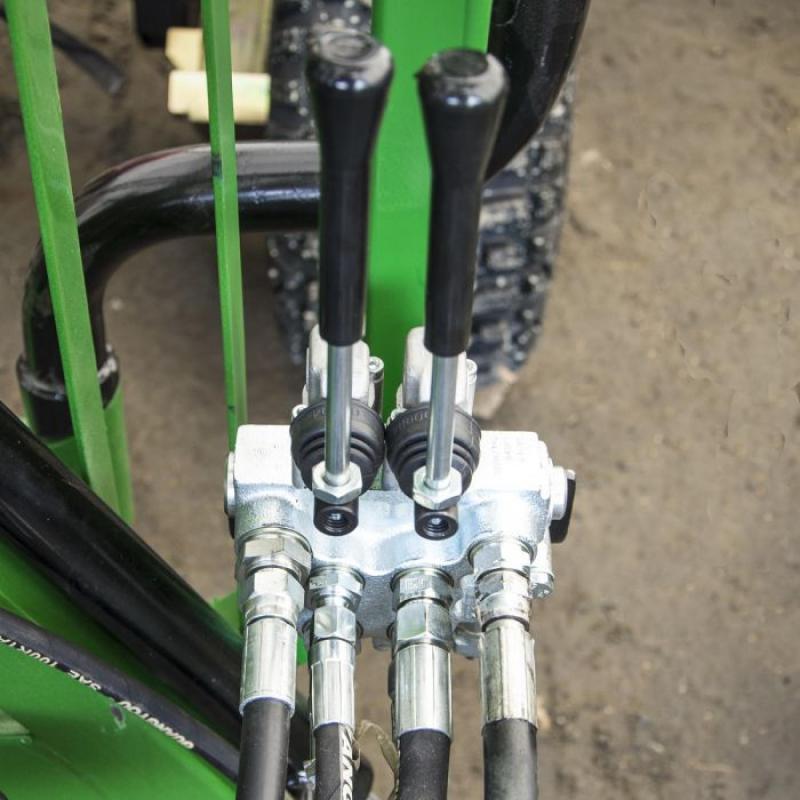

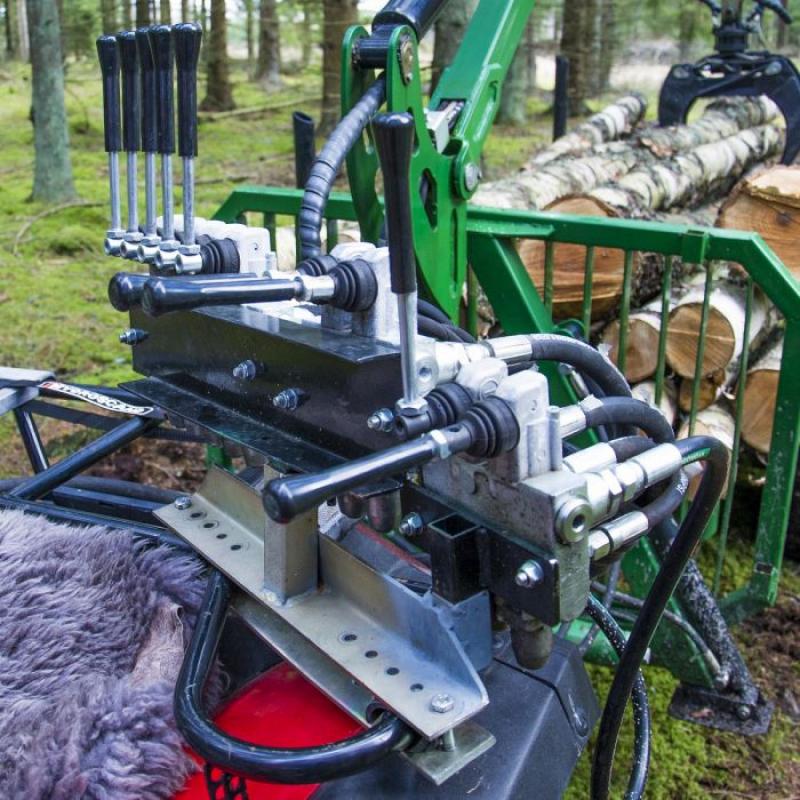

Grapple loader valve: Two-lever: 7 sections, supplied as standard.
CENTRAL BEAM Front 80 x 80 mm, Rear 90 x 90 mm
WHEEL DRIVE Hydraulic motors, 2 x 160 cc
GROUND CLEARANCE 400 mm, c-pipe
HEADBOARD W x H 1100 x 720 mm
GRIPPING AREA 0.08 m²
GRAPPLE 690 mm (width)
WHEELS Wheel drive tread pattern 22 x 11 -10

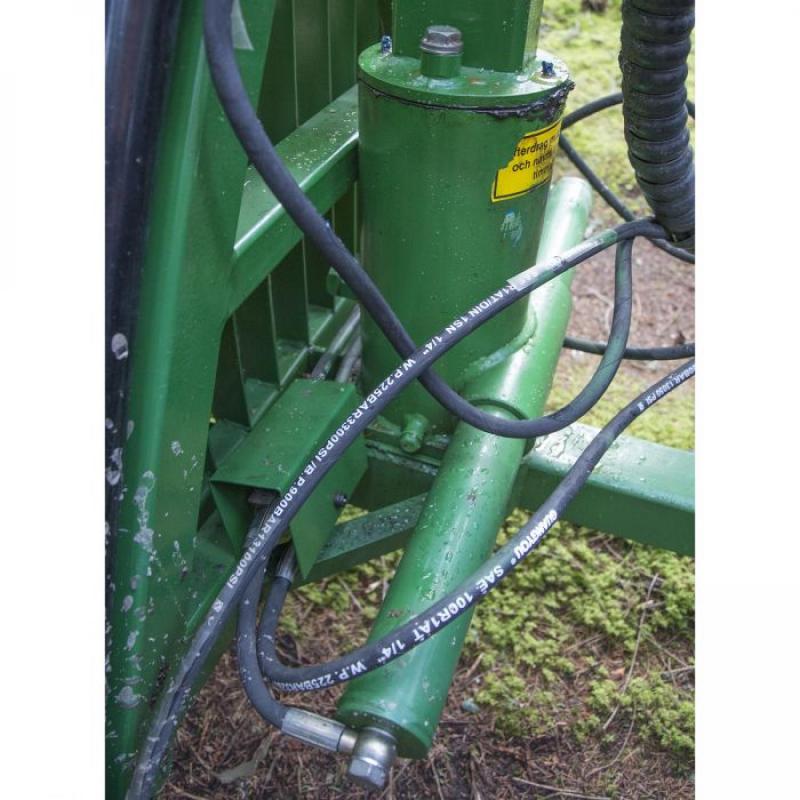

HYDRAULIC STABILISERS Standard
LOAD WIDTH Internal 600 mm (bottom), 1100 mm (top)
LIFTING CAPACITY at 3.6 m: 175 kg
MAX. LOAD 2000 kg
MOTOR FOR THE HYDRAULIC VALVE BLOCK 9 hp
CRANE REACH 3600 mm
FULLY ROTATING ROTATOR Standard

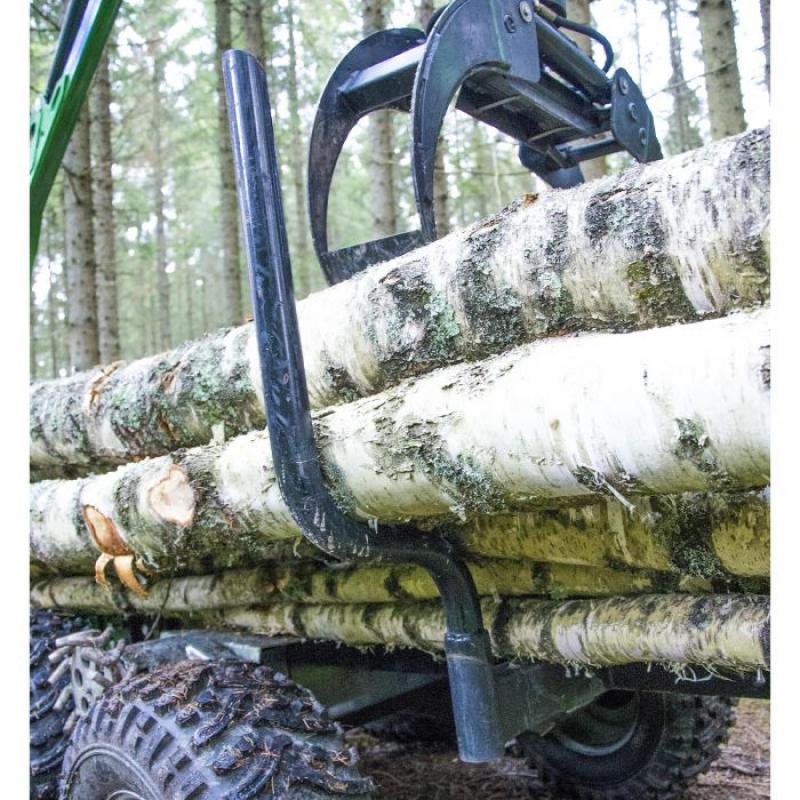

BOLSTERS 4 pcs., height 800 mm
OPERATING WEIGHT 445 kg
TOTAL WIDTH 1350 mm

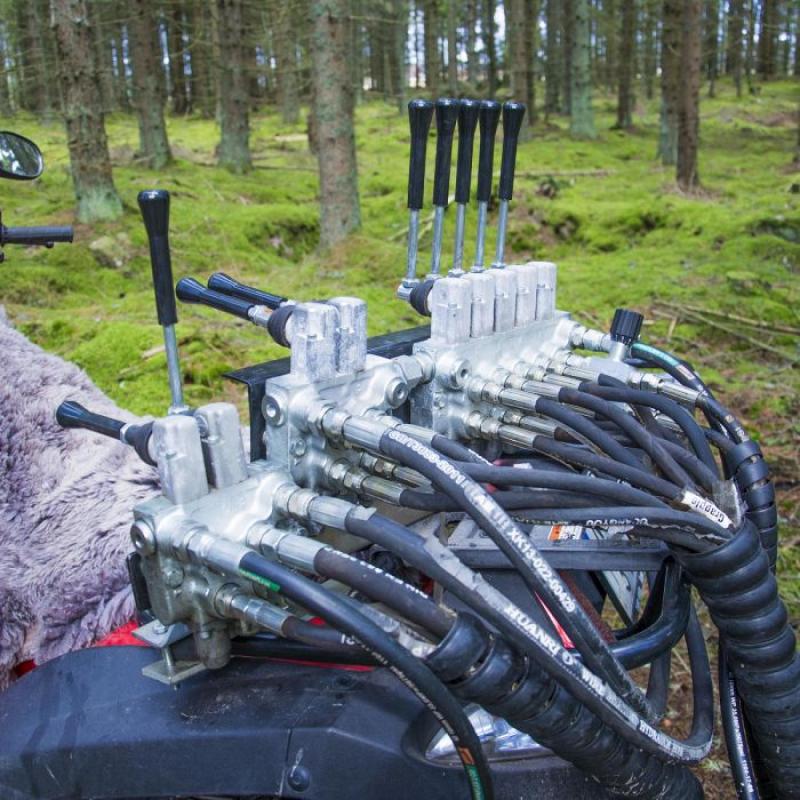

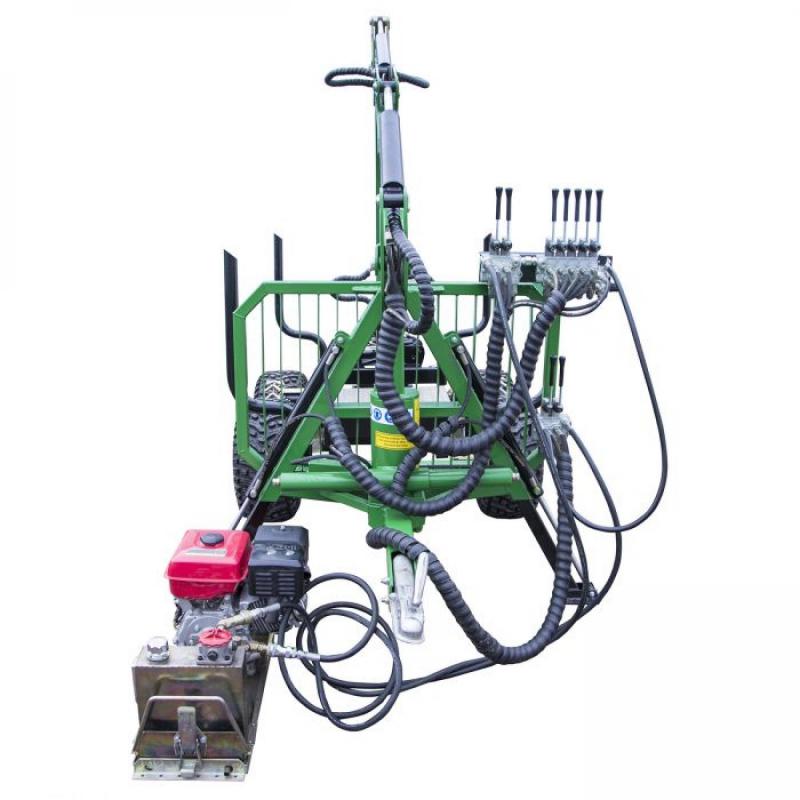

VALVE BLOCK Italian, 5-lever + 2 stabilisers
SLEWING CYLINDERS, SLEWING HOUSE CRANE 2 pcs.
